H2-4D
The world's first dedicated 16-channel Dolby ATMOS® digital audio decoder
PRIMARY FEATURES
CONVERT up to 16 Channels of HDMI audio simultaneously:
- DANTE® or RAVENNA® (AES67 included in both)
- BALANCED ANALOG
- HDMI® (Audio Only)
- AES/EBU (AES3)
DECODE / RENDER
- DOLBY - Atmos®, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Surround, Dolby Vision (passthrough)
- DTS - DTS-X®, ES, HD Master Audio, HD High Resolution Audio, Express-HD LBR, Neural:X
- PCM - 2ch, PCM Multi-channel, Downmix
|
INPUTS
|
OUTPUTS
|
ADDITIONAL FEATURES
- 16 & 24 bit compatible
- Decodes up to 16 channels at :
- 44.1kHz / 48kHz
- 88.2kHz / 96kHz
- 176.4kHz / 192kHz
- ARC & eARC Lip-sync delay
- HDMI 2.0 pass-through output
- Includes Power over Ethernet (PoE)
- GUI for system set up (via Ethernet)
- Ethernet access for firmware upgrades
- Object based rendering from 5.1.2 to 9.1.6
- Decoding status LED (Dolby/Green, DTS/Blue, PCM/Purple)
- HDMI OUTS have EDID emulation for stable device communication
- 5 years warranty

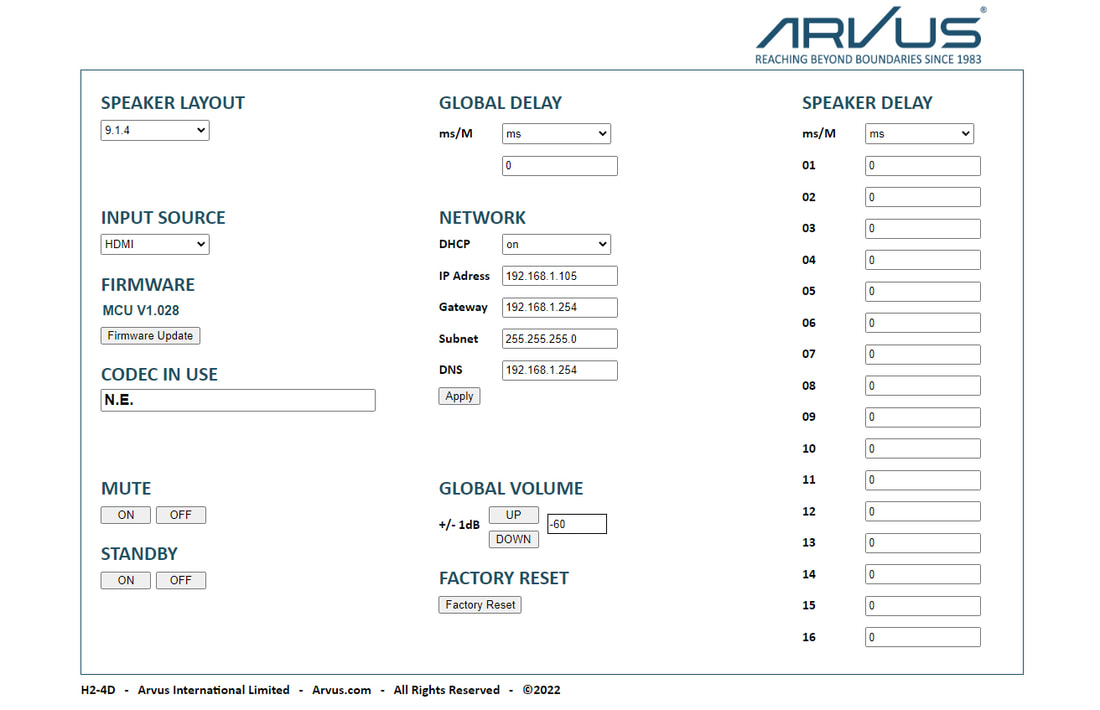

GUI SCREENSHOT
PHYSICAL FEATURES
- No internal fans
- LED and power switch on the front panel
- Inputs and outputs mounted on the back panel
- Professional grade product for 24/7 operation
- External international power supply (100v/240v)
- Weight – 3.5kg / 7.7 pounds
- 483mm x 44mm x 245mm (1U - 19“)
PRODUCT BACKGROUND
In 2009 we were contracted by Dolby to supply custom speakers to support their Atmos development. From our involvement at this early stage we have watched with tremendous interest the success of Atmos across cinema and its rapid adoption in home audio, gaming, mobile, streamed media, music and beyond.
In 2011 Sony Entertainment commissioned the first order of our HDMI-2A. This 8-channel HDMI to AES/EBU
de-embedder has become an essential device for hundreds of the worlds leading gaming, music, TV and film post-production studios enabling consistent audio levels across multiple equipment and audio standards.
Now a decade later the audio industry is fast evolving beyond 8-channel audio. Audio professionals have been reaching out to us requesting a 16-channel solution to support their Atmos post-production workflow.
After extensive design, development, testing and direct consultation with experts across the globe we are excited to finally release the H2-4D.
I would like to personally thank the many dozens of engineers, external consultants and the team at Dolby for assisting us to make this product an elegant solution to support the audio industry’s transition to object-based audio production.
In 2011 Sony Entertainment commissioned the first order of our HDMI-2A. This 8-channel HDMI to AES/EBU
de-embedder has become an essential device for hundreds of the worlds leading gaming, music, TV and film post-production studios enabling consistent audio levels across multiple equipment and audio standards.
Now a decade later the audio industry is fast evolving beyond 8-channel audio. Audio professionals have been reaching out to us requesting a 16-channel solution to support their Atmos post-production workflow.
After extensive design, development, testing and direct consultation with experts across the globe we are excited to finally release the H2-4D.
I would like to personally thank the many dozens of engineers, external consultants and the team at Dolby for assisting us to make this product an elegant solution to support the audio industry’s transition to object-based audio production.
